BV Series – Encapsulated Power Transformers

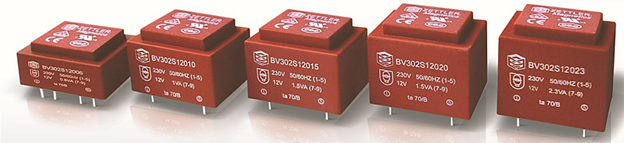

BV Series - Encapsulated Power Transformers

A series of cost effective, Class 2 recognized encapsulated power transformers – suited for applications in LED Lighting, Electric Metering, Motor Controls, Thermostats and other similar fields.
UL, VDE & CE CERTIFICATIONS

Key Benefits
  • Less expensive than traditional open frame design.
  • Significant reduction in physical footprint compared to traditional open frame formats.
  • Superior thermal characteristics that make them run up to 5°C cooler in continuous duty, and up to 40°C cooler in surge testing than previous generations, due to ultra-high winding efficiency and vacuum-sealed epoxy processes.
  • Can be modified to withstand 14kV surge.
  • Provide minimized EMI noise without the added cost of a shield, as a result of proprietary assembly methods employed at Zettler Magnetics China wholly owned manufacturing facilities.
Key Features
  • Input 115V OR 230V / Single and Dual Output
  • Dielectric Strength 4200Vrms
  • Inherently Energy Limited
  • Conforms to EN 61558 AND EN 60950
  • 100% Production Tested
Standard Configurations (Custom designs up to 30VA available on request)
EE20 Mini Series
VA Certificates Height Datasheet
0.35VA VDE / UL / CQC 16.0mm EE20 0.35VA
0.5VA VDE / UL / CQC 19.5mm EE20 0.5VA
0.6VA VDE / UL / CQC 19.5mm EE20 0.6VA
EI30 Series
VA Certificates Height Datasheet
0.6VA VDE / UL / CQC 15.7mm EI30 0.6VA
1.0VA VDE / UL / CQC 22.3mm EI30 1.0VA
1.2VA VDE / UL 22.3mm EI30 1.2VA
1.5VA VDE / UL / CQC 22.3mm “A” EI30 1.5VA
1.5VA VDE / UL / CQC 24.4mm EI30 1.5 VA
1.8VA VDE / UL / CQC 24.4mm EI30 1.8VA
2.0VA VDE / UL / CQC 27.4mm EI30 2.0 VA
2.3VA VDE / UL / CQC 29.8mm EI30 2.3VA
2.4VA VDE / UL / CQC 27.4mm EI30 2.4VA
2.8VA VDE / UL / CQC 29.8mm EI30 2.8VA
EI38 Series
VA Certificates Height Datasheet
3.2VA VDE / CQC 27.0mm EI38 3.2VA
